LMS Water Purification Unit 4m3/hour
LMS Water Treatment Unit

LMS Water Treatment Unit: 4m³ / hour

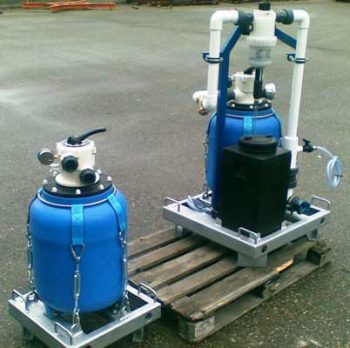

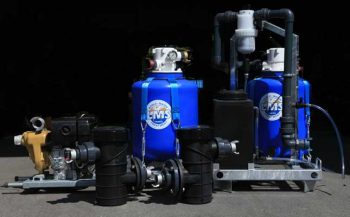

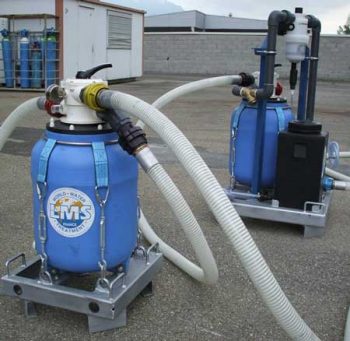

The skid mounted LMS water purification system is capable of producing 4,000 litres of safe drinking water per hour from contaminated water sources such as wells, lakes, ponds and streams. Adjustable amounts of slow dissolving chlorine can injected at regular intervals using 2 chlorine dosers. The unit is self contained and modular in design, making it easily transportable and easy to move by hand. Galvanised trailer options are available for field use. Please add a note to the product once it has been added to your basket for quoting. It can be set up in 30 minutes or less and will fit easily into a land cruiser or similar vehicle.

Kit comprises:

  • Motor pump set and primary filter with 2 secondary filters, 25 and 5 microns
  • Chlorine dosers with refills
  • Flocculation kit with refills
  • Turbidity reduction kit
  • Pipework and tools for operating and maintenance

This unit is supplied in accordance with the following agency specifications:

IFRC & RCS Approved

Description

IFRC & RCS (Red Cross & Red Crescent) order code: WWTULMSU04

Trailer Mounted Option:

  • Galvanised and robust for on or off-road use.
  • Single axle with a load limit of 1,600kg
  • Single coupling with height adjustable shaft, hook for ball or ring towing hitch.

Please add a note to this item in your basket if you would like us to quote for the above option.

Product Specifications

General Specifications:

  • Diesel engine, 5kW, 6.8hp, 3,600 RPM
  • 4 Stroke diesel motor, single cylinder, air cooled
  • Recoil start
  • Self priming pump
  • Fuel filter and Dry air filter
  • Built in oil filter
  • 4.9 litre fuel tank for 10 to 12 hours running time
  • Operation time indicator
  • Tool kit, spares kit and full operating instructions
Weight 400 kg

Downloads for this product:

LMS 4m3 WTU Technical Specification
