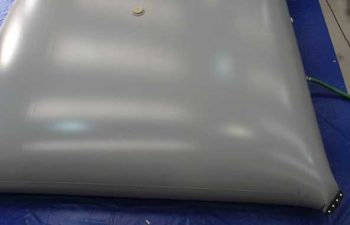

15m3 Hvy Duty Flexible Fuel Storage Bladder: Key

View List

Robust and durable fuel storage bladders available in a variety of sizes, with capacities ranging from 1,000 to 100,000 litres – for use with diesel, Jet fuels (A1, JP4, 5 and 8) and petroleum.

Flexible fuel storage bladders are suitable for all climates and can be easily deployed by 2 people in around 15 minutes.

15,000 Litre capacity.

Note: Please add an addtional $439.00 to include a flame trap assembly if the bladder is for multi fuel.

Description

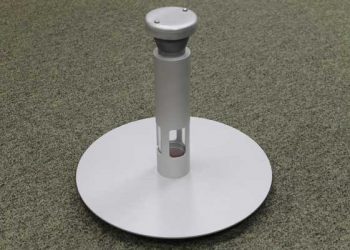

Flame Trap / Vent Assembly 350mm for flexible fuel storage bladders

ATEX compliant and certified flame arresting safety vent designed for use with tanks containing fuels. The large flat stabiliser plate keeps the unit upright in partially filled tanks. The unit is manufactured from stainless steel and anodised aluminium.

Please see data sheet for further information.

Product Specifications

Heavy Static Use Fuel Bladders

Each bladder supplied with instruction manual and repair kit.

Material:

Polyurethane coated both sides on to high tenacity polyamide (DPWPU4)

Grey coloured outer coating, grey colour inner coating (Also available in MOD Drab Green if required)

Fittings:

1 x 2″ Skin fitting with V50 locking butterfly valve, giving 2″ BSP(F) outlet with plug

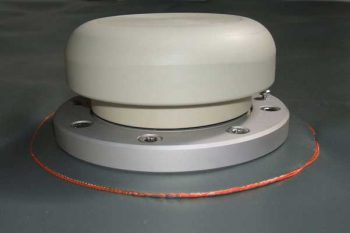

1 x 2.5″ Skin fittings with mushroom vent and alternative plug

1 x 2″ Skin fitting with plug

Outlets are fitted to one short end of the bladder, spaced equally unless otherwise requested. Please use the Outlet selection document in the downloads section if you require alternate placement.

Dimensions:

5.00m x 4.59m in layflat mode

3.90m x 3.49m x 1.10m high in filled mode

Weight:

77kg

Packed Volume (excl. case):

0.30m³

Downloads for this product:

Fuel Storage Bladder Data SheetFlame Trap Assembly Data SheetOutlet Selection DocumentFuel Bladder Instruction Manual
