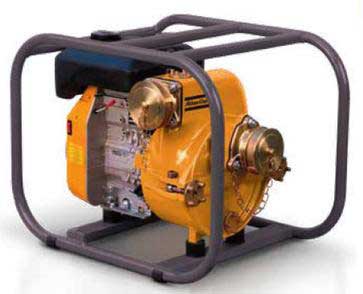

A lightweight and extremely portable 2″ self priming petrol driven pump.
Key features:
The ETP50B is one of 3 models in this series. All are lightweight, highly portable, self priming petrol driven pumps.
Perfect for multiple applications including emergency response, general construction and industrial dewatering.
The pump unit is supplied mounted in a robust roll over frame for increased durability on site.
They’re designed to be ready to go – whenever you are, providing peak performance at a moments notice.
Specification
.tg {border-collapse:collapse;border-spacing:0;border-color:#aaa;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:0px;overflow:hidden;word-break:normal;border-top-width:1px;border-bottom-width:1px;border-color:#aaa;color:#333;background-color:#fff;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:0px;overflow:hidden;word-break:normal;border-top-width:1px;border-bottom-width:1px;border-color:#aaa;color:#fff;background-color:#f38630;}
.tg .tg-1wig{font-weight:bold;text-align:left;vertical-align:top}
.tg .tg-s6z2{text-align:center}
.tg .tg-u3lu{background-color:#FCFBE3;font-weight:bold;text-align:left}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-p0kl{background-color:#FCFBE3;font-weight:bold;text-align:left;vertical-align:top}
.tg .tg-lyaj{background-color:#FCFBE3;text-align:center}
.tg .tg-s268{text-align:left}
.tg .tg-5ua9{font-weight:bold;text-align:left}
.tg .tg-yq6s{background-color:#FCFBE3;text-align:center;vertical-align:top}
| ETP50B Specification | ||
|---|---|---|
| Suction / Discharge | 2.0″ BSP Threaded | |
| Max. Flow Rate | l/min | 830 |
| Max. Head | m | 28 |
| Solids Handling | mm | 27 (1.06″) |
| Weight (dry) | kg | 32 |
| Impeller Type | Semi Open | |
| Impeller | Aluminium alloy UNI 3504 |
|
| Wear Plate | Rubber lined Alumimium alloy UNI 3504 |
|
| Pump Housing | Aluminium alloy UNI 3504 |
|
| Shaft | Brass UNI 5705 |
|
| Mechanical Seal | Silicone Carbide | |
| Elastomers | Nitrile Rubber | |
| Non Return Valve | Stainless AISI 316 | |
| Engine Model | Honda GX 160 Gasoline | |
| Displacement | cm3 | 163 |
| Number of Cylinders | 1 | |
| Max. Power | kW | 4.0 |
| Speed (Variable max) | rpm | 3600 |
| Starter Type | recoil | |
| Max. Fuel Consumption | l/h | 1.4 |
| Fuel Tank Capacity | l | 3.6 |
Downloads for this product:
ETP Pump Series Data Sheet
