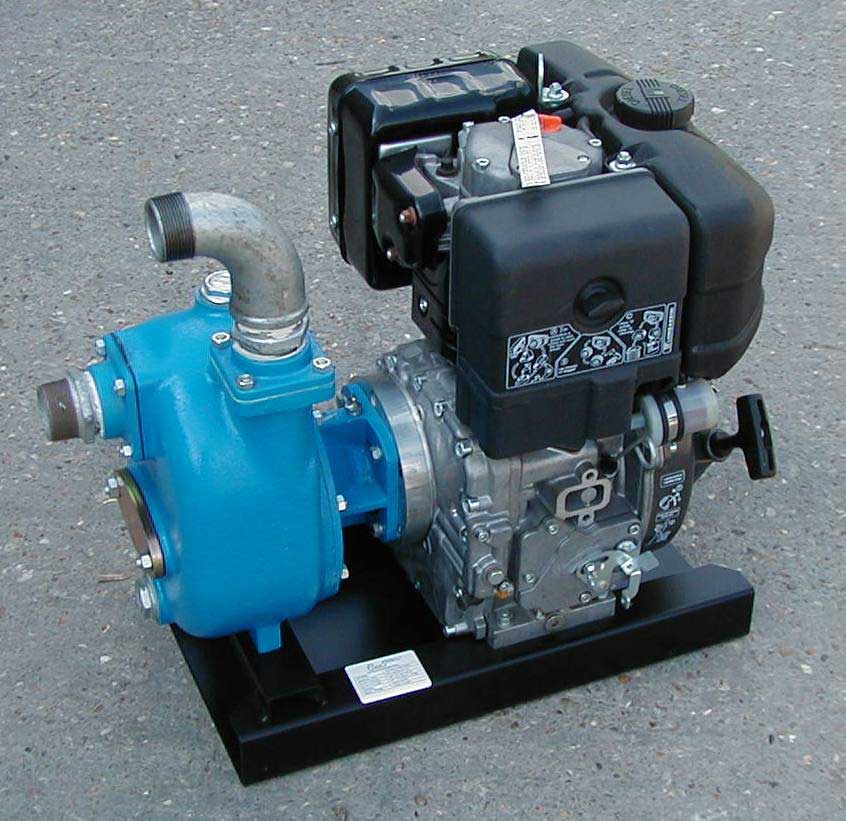

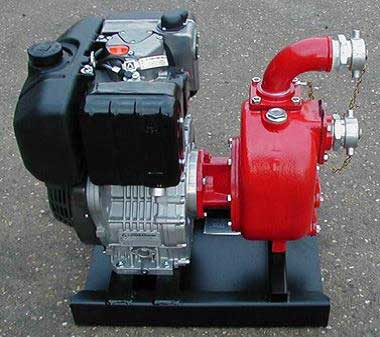

Swallow S45 Fuel Transfer Pumps
Fuel Transfer Pumps Performance ChartSwallow S45 Fuel Transfer Pump

Fuel Transfer Pumps: Diesel & Jet Fuels

Clear

Our Swallow, Falcon and Osprey DF range of pumps have been developed to handle diesel fuels, Jet A fuels and other similar products with a flash point of more than 35C. They’re powered by super efficient Lombardini industrial air cooled diesel driven engines and have a spark arrestor fitted as standard.

The components are all rubber in ‘viton’ with screwed BSP 60° cone male suction and discharge connections with blanking caps and chains.

These pumps are NOT suitable for pumping Petroleum.

For technical help and advice we recommend visiting our specialist Pump Division.

Pumps in this range can be supplied in accordance with the following agency specifications:

International Rescue Committee Logo

Description

IRC (International Rescue Committee) order code:

Swallow S50DF – (2″ x 2″ Fuel Transfer Pump)

Please add a note to this item once it is placed in your basket if you would like us to quote for any of the options mentioned in the specifications tab.



Product Specifications

Model

Size

Engine

Starting

Max Flow (l/m)

Max Head (m)

Solids (mm)

L x W x H (cm)

Weight (kg)

Swallow S45DF

1.5”

Lombardini15LD315

Recoil

400

50

14

60 x 36 x 55

70

Swallow S50DF

2”

Lombardini15LD315

Recoil

700

30

25

62 x 37 x 55

72

Swallow S60DF

2”

Lombardini15LD440

Recoil

750

50

25

65 x 42 x 61

95

Falcon S801DF

3”

Lombardini15LD440

Recoil

1400

30

30

65 x 42 x 66

112

Osprey 453EDF

4”

Lombardini11LD626

Electric

2600

52

35

136 x 58 x 108

420

Spares Options

Automatic Overspeed Shutdown, Tubular Frame, Export Packing, Pump and Engine Spares Kit, Hose Kit, Site Trolley / Trailer

Downloads for this product:

Swallow S45DF Pump InformationSwallow S50DF Pump InformationSwallow S60DF Pump InformationFalcon S801DF Pump Information
