Diesel Driven Pumps
Condor Performance Chart

Self Priming Centrifugal High Head Pumps

Clear

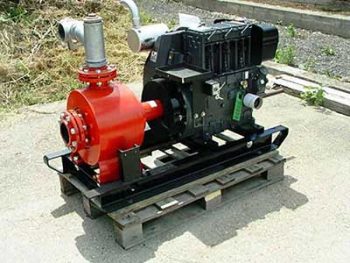

The Condor high head self priming centrifugal pump with 3″ outlet and 4″ inlet and PN16 flange connections is ideal for irrigation and large scale potable water supply. They are particularly suited to pressure transfer of clean water such as in fire fighting operations. The pump range is constructed in cast iron and offers a highly efficient enclosed impeller and integral non return valve with a shaft running in 2 anti friction bearings for rigidity and long life.

Condor 4.353E and 4.323RE are open units.

Condor 4.372ES has a weatherproof acoustic engine canopy designed to reduce running noise levels to no more than 76dBA at 7m.

For technical help and advice we recommend visiting our specialist Pump Division.

The Condor pump set can be offered in accordance with the following agency specifications:

Medecins Sans Frontieres Logo

Description

Medecins Sans Frontieres (MSF) order code: KWATZNL0052

Please add a note to this item once it has been added to your basket if you would like us to quote for any of the options mentioned in the specifications tab.

Product Specifications

Model

Size

Engine

Starting

Max Flow (l/m)

Max Head (m)

Solids (mm)

L x W x H (cm)

Weight (kg)

Condor 4.353E

4” x 3”

Lombardini 11LD626

Electric

1340

70

8

128 x 61 x 82

404

Condor 4.323RE

4” x 3”

Lister Petter TR3

Electric

1340

70

8

122 x 61 x 82

439

Condor 4.372ES

4” x 3”

Hatz 2L41C

Electric

1340

70

8

120 x 72 x 120

510

Spares Options

Pump and Engine Spares Kit, Hose Kit, Quick Couplings, Site Trolley / Trailer

Downloads for this product:

Condor 4.323RE Data Sheet
