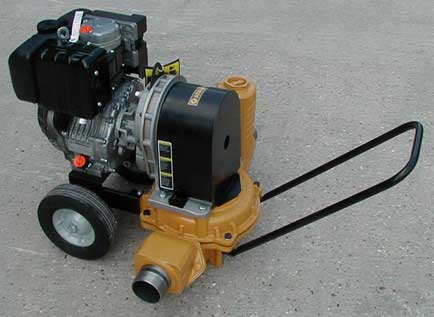

Pelican 351 Solids Handling Pumps
Pelican 351 rotating basePelican Performance Chart

Solids Handling Pumps

Clear

The Pelican range of solids handling pumps are perfect for handling dirty water including sludge and raw sewage or any other fluid containing abrasives or larger solids in suspension up to 60mm Ø. The range offers indefinite dry running with rapid priming. There are no seals or rotating parts in contact with fluid.

Pelican pumps require only simple and very occasional maintenance and are supplied with engine and pump operating and instruction manuals.

Pelican 251 and 351 are constructed in aluminium with thermoplastic diaphragm and are mounted on a site trolley.

Pelican DLO100 offers cast iron wetted parts with a neoprene diaphragm and is mounted on a site trailer.

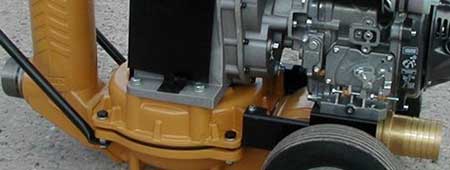

The Pelican range features a swivel base so the pump can be rotated through 90º for easier access to smaller spaces or through narrow openings.

For technical help and advice we recommend visiting our specialist Pump Division.

This pump range can be supplied in accordance with the following agency specifications:

International Rescue Committee Logo

Description

IRC (International Rescue Committee) order codes:

PELICAN 351 – 3″ Self Priming Diaphragm Sludge Pump

PELICAN 251 – 2″ Self Priming Diaphragm Sludge Pump

Please add a note to this item once placed in your basket if you would like us to quote for any of the options mentioned in the specifications tab.



Product Specifications

Model

Size

Engine

Starting

Max Flow (l/m)

Max Head (m)

Solids (mm)

L x W x H (cm)

Weight (kg)

Pelican 251

2”

Lombardini15LD225

Recoil

190

10 (7.5)*

40

100 x 65 x 59

72

Pelican 351

3”

Lombardini15LD225

Recoil

340

10 (7.5)*

40

104 x 65 x 59

82

Pelican DLO100

4”

Lombardini15LD315

Recoil

550

15 (10)*

60

141 x 88 x 84

174

Spares Options

Pump and Engine Spares Kit, Hose Kit

Downloads for this product:

Pelican 251 Pump InformationPelican 351 Pump InformationPelican DLO100 Pump Information
