Borehole Submersible Pump Kit

Grundfos Submersible Pump Set 3″

Clear

3″ Ø single phase motor pumpset with rising main, wellhead assembly and control panel used for pumping water from 25-60m depth and is suitable for continuous or periodic operation. The multi stage submersible pump is fitted with an electric motor and has a rated flow of 5m³ / hour at rated head 73m. Power requirement 2.2kW (approximately 4kW for starting).

For technical help and advice we recommend visiting our specialist Pump Division.

This Pump Set is supplied in accordance with the following agency specifications:

Oxfam LogoInternational Rescue Committee LogoSave the Children Logo

Description

Oxfam order code: BSQ5/1

Save the Children order code: WA005

International Rescue Committee (IRC) order code: BHPUMKIT

Product Specifications

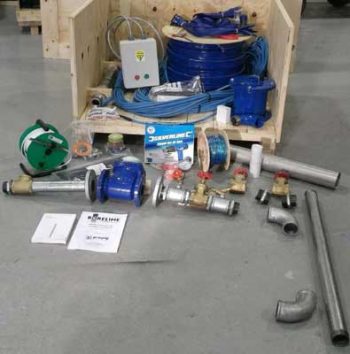

The pump kit is supplied with:

  • Complete pump with motor
  • Operating and maintenance instruction manuals.
  • Installation & spares kit
  • Dip meter
  • Rising main and wellhead assembly, non return valve and control valve assembly
  • 80m pump cable

Packing Information:

Crate 1 – 115 x 115 x 60cm    192kg

Crate 2 – 315 x 25 x 35cm      59kg

Weight 251 kg
