Self Priming Water Pump Kit 3"

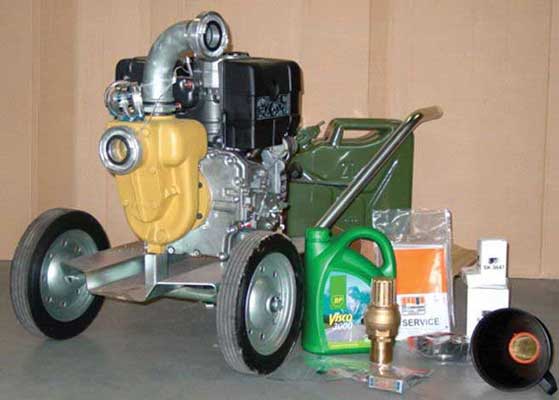

3″ Water Pump Kit with Site Trolley

The kit contains pump, fittings and accessories specified by International Federation of Red Cross and Red Crescent Societies (IFRC & RCS) Emergency Items Catalogue and comes complete with a 2 wheeled site trolley. 3″ Self priming centrifugal diesel driven pump with Lombardini 3LD510 engine or equivalent, developing 6.7kW at a nominal 3000 rpm. The kit is suitable for raw water and has a solids handling capacity of 18mm Ø.

For technical help and advice we recommend visiting our specialist Pump Division.

This equipment is supplied in accordance with the following agency specifications:

IFRC & RCS Approved



Description

IFRC & RCS (Red Cross & Red Crescent) order code: KWATPUMCRW03

Product Specifications

Engine Specification:

4-stroke single cylinder, air cooled diesel engine with variable speed control. Manual recoil start with dry air filter, exhaust silencer plus oil and fuel filters. Low oil level security cut-off with a minimum 4 litre fuel tank.

Pump Specification:

Centrifugal, self priming pump with cast iron construction. Integral non return valve with replaceable rubber coated wear plate. High efficiency clog resistant impeller and carbon / ceramic faced mechanical seal. Detachable discharge bend and screwable BSP suction / discharge connections.

Weight 207 kg
Dimensions 147 × 71 × 93 cm

Downloads for this product:

There are no downloads for this product.
