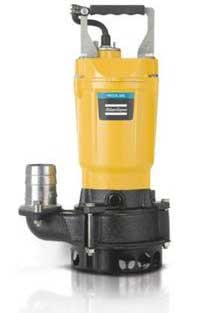

WEDA 08S Electric Submersible Pump 2″

View List

The WEDA 08S has higher wear resistance and handles larger solids up to 25mm Ø such as sand, mud and trash. This is a portable, lightweight and easily maintained 2″ dewatering pump running on a 230v motor. Optional float and zinc anodes are available.

Key Features


  • Dry running capacity
  • Thermal protection on motor
  • Built in high torque capacitor
  • Double mechanical shaft seals constructed from silicone carbide
  • Additional lip seal for extended lifespan of the primary seal
  • Easily accessed impeller and pump housing
For technical help and advice we recommend visiting our specialist Pump Division.

Description

The WEDA small pump range are portable, lightweight and easily maintained. They provide a simple, cost effective solution for light duty applications. The design of the pump’s outer jacket for cooling and thermo protection keeps it running safely under a variety of conditions. The triple shaft seal assures a long lifetime and the semi vortex wet end minimises maintenance. Adjustable wear resistant rubber diffusers and hardened high chrome impellers ensure durability in tough environments.

The unique sealing system and modular design make this pump range one of the most flexible on the market.


WEDA Standard Features

WEDA Standard Features

* Not all of the features mentioned above are available on the WEDA small range of pumps – please check data sheets for exact details

Product Specifications

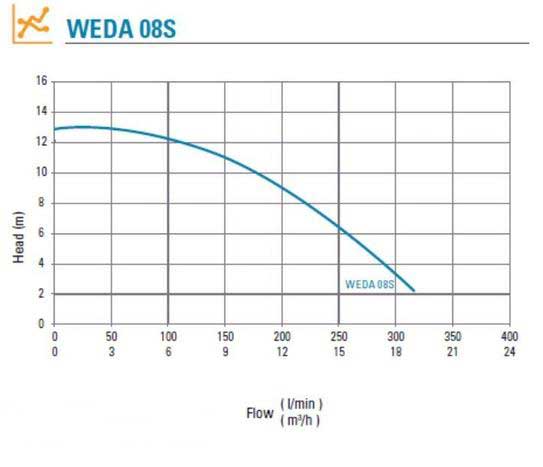

Specification


Max. Head: 13 m

Max. Flow: 19 m³/hr, 317 l/min

Max. power input: 1.2 kW

Rated current (230v): 5.2A

Discharge connection: 2″

Max. solid handling size: 25 mm



Weight & Dimensions


Weight: 13 kg

Length: 416 mm

Width: 277 mm

Circumference: 241 mm

Downloads for this product:

WEDA Electric Submersible Dewatering Pumps
