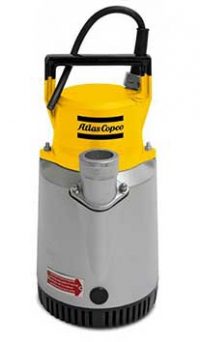

WEDA 10 Electric Submersible Pump 2″

View List

The WEDA 10 is a heavy duty 2″ dewatering pump with built in motor phase failure protection and correct rotation control. The unit is easily maintained with wear resistant diffuser and impeller materials.

The WEDA 10 is offered with 110V, 230V and 400V motor options.

Optional float and zinc anodes are available.

Key Features

  • Robust design
  • Lightweight and user friendly
  • Wear resistant wet end in CR-alloy steel and natural rubber
  • Adjustable wear parts
  • Complete seal pack for easy and fast service
  • Built-in capacitor and contactor
  • Easy installation

Designed for

  • Heavy duty pumping of abrasive liquids
  • Maximum submersible depth of 20m
  • Maximum liquid temperature +40C
  • Maximum density of liquid, 1,100kg/m³
  • pH of liquid between 5-8
For technical help and advice we recommend visiting our specialist Pump Division.

Description

The WEDA pump range is designed for the performance, ease of use and reliability that you need. They are suitable for dewatering applications across multiple industries and are a cost effective solution to your dewatering requirements.

WEDA pumps are made for durability and promise optimal performance for your application.

The unique sealing system and modular design make this pump range one of the most flexible on the market.


WEDA Standard Features

WEDA Standard Features

Product Specifications

Technical Data


.tg {border-collapse:collapse;border-spacing:0;border-color:#aaa;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:0px;overflow:hidden;word-break:normal;border-top-width:1px;border-bottom-width:1px;border-color:#aaa;color:#333;background-color:#fff;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:0px;overflow:hidden;word-break:normal;border-top-width:1px;border-bottom-width:1px;border-color:#aaa;color:#fff;background-color:#f38630;}
.tg .tg-1wig{font-weight:bold;text-align:left;vertical-align:top}
.tg .tg-s6z2{text-align:center}
.tg .tg-u3lu{background-color:#FCFBE3;font-weight:bold;text-align:left}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-p0kl{background-color:#FCFBE3;font-weight:bold;text-align:left;vertical-align:top}
.tg .tg-lyaj{background-color:#FCFBE3;text-align:center}
.tg .tg-5ua9{font-weight:bold;text-align:left}
.tg .tg-hgcj{font-weight:bold;text-align:center}
.tg .tg-yq6s{background-color:#FCFBE3;text-align:center;vertical-align:top}

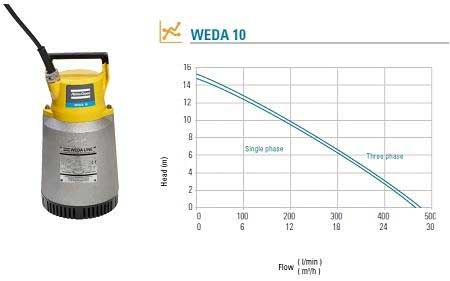

WEDA 10
Specification
Unit Single Phase Three Phase
Maximum Head m 15.5 15
Maximum Flow l/min
m3/h
483
29
466
28
Rated Output kW 1 1
Maximum Power Output kW 1.5 1.2
Rated Current (110V) kA 13
Rated Current (230V) kA 6.1 4
Rated Current (400V) A 2
Rated Current (500V) A 1.8
Shaft Speed rpm 2900 2900
Discharge Connection inch 2″ 2″
Maximum Solids Handling Size mm 4 4

.tg {border-collapse:collapse;border-spacing:0;border-color:#aaa;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:0px;overflow:hidden;word-break:normal;border-top-width:1px;border-bottom-width:1px;border-color:#aaa;color:#333;background-color:#fff;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:0px;overflow:hidden;word-break:normal;border-top-width:1px;border-bottom-width:1px;border-color:#aaa;color:#fff;background-color:#f38630;}
.tg .tg-s6z2{text-align:center}
.tg .tg-u3lu{background-color:#FCFBE3;font-weight:bold;text-align:left}
.tg .tg-lyaj{background-color:#FCFBE3;text-align:center}
.tg .tg-5ua9{font-weight:bold;text-align:left}
.tg .tg-hgcj{font-weight:bold;text-align:center}

WEDA 10
Weight / Dimensions
Unit Single Phase Three Phase
Weight kg 12.5 12.5
Length mm 442 372
Width mm 222 222
Circumference mm 183 183

Downloads for this product:

WEDA Electric Submersible Dewatering PumpsWEDA 10 (50Hz) Data Sheet
