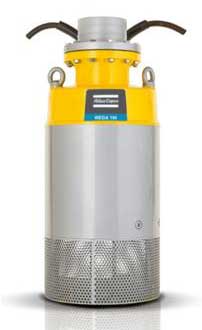

WEDA 100 Heavy Duty Electric Submersible Dewatering Pump

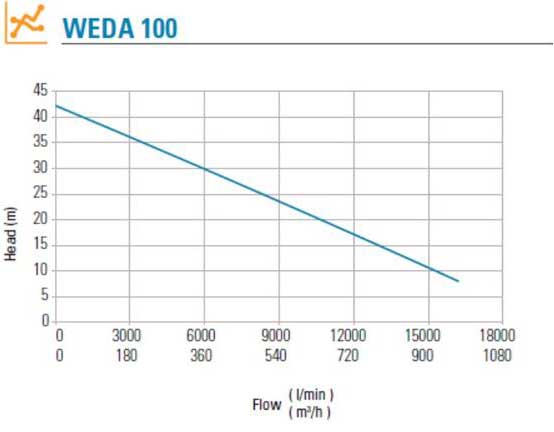

WEDA 100 Pump Curve

WEDA 100 Electric Submersible Pump 10″

The WEDA 100 is a heavy duty 10″ dewatering pump with built in motor phase failure protection and correct rotation control. The unit is easily maintained with wear resistant diffuser and impeller materials.

This model accommodates the WEDA instant service pack allowing seals, impeller and other parts to be easily changed on site in just a few minutes.

The WEDA 100 is offered with a 400V motor.

Optional float and zinc anodes are available.

Features

  • Robust design
  • User friendly
  • Wear resistant wet end in CR-alloy steel and natural rubber
  • Adjustable wear parts
  • Complete seal pack for easy and fast service
  • Built-in contactor for DOL start
  • Easy installation

Designed for

  • Heavy duty pumping of abrasive liquids
  • Maximum submersible depth of 20m (66ft)
  • Maximum liquid temperature +40C (+104F)
  • Maximum density of liquid, 68 lbs/ft³ (1,100 kg/m³)
  • pH of liquid between 5-8
For technical help and advice we recommend visiting our specialist Pump Division.

Description

The WEDA 100 pump is designed for the performance, ease of use and reliability that you need. It is suitable for dewatering applications across multiple industries including mining and construction. It is one of the most cost effective solutions for your dewatering requirements.

WEDA pumps are made for durability and their robust design promises optimal performance for your application.

The unique sealing system makes this pump range one of the most flexible on the market. It means that you can change seals, impeller and other parts in minutes. The optional ISP (Instant Service Pack) offers seals, bearing oil and oil housing so you can make quick and easy changes at the work site.

The modular design uses stainless steel nuts and bolts that are all the same size, so you’ll only need one tool to complete any maintenance required on site.


WEDA Standard Features

WEDA Standard Features

Product Specifications

Specification

.tg {border-collapse:collapse;border-spacing:0;border-color:#aaa;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:0px;overflow:hidden;word-break:normal;border-top-width:1px;border-bottom-width:1px;border-color:#aaa;color:#333;background-color:#fff;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:0px;overflow:hidden;word-break:normal;border-top-width:1px;border-bottom-width:1px;border-color:#aaa;color:#fff;background-color:#f38630;}
.tg .tg-88nc{font-weight:bold;border-color:inherit;text-align:center}
.tg .tg-b7k7{background-color:#FCFBE3;font-weight:bold;border-color:inherit;text-align:left}
.tg .tg-1wig{font-weight:bold;text-align:left;vertical-align:top}
.tg .tg-g6ne{background-color:#FCFBE3;border-color:inherit;text-align:center}
.tg .tg-kiyi{font-weight:bold;border-color:inherit;text-align:left}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-uys7{border-color:inherit;text-align:center}
.tg .tg-p0kl{background-color:#FCFBE3;font-weight:bold;text-align:left;vertical-align:top}
.tg .tg-yq6s{background-color:#FCFBE3;text-align:center;vertical-align:top}

WEDA 100
Specification
Unit Normal Head
Maximum Head m 42.5
Maximum Flow l/min
m3/h
16,200
972
Rated Output kW 54
Maximum Power Input kW 65
Rated Current (110V) A
Rated Current (230V) A
Rated Current (400V) A 110
Rated Current (500V) A 80
Shaft Speed rpm 1450
Discharge Connection inch 10
Max. Solid Handling Size mm 12

Weight & Dimensions

.tg {border-collapse:collapse;border-spacing:0;border-color:#aaa;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:0px;overflow:hidden;word-break:normal;border-top-width:1px;border-bottom-width:1px;border-color:#aaa;color:#333;background-color:#fff;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:0px;overflow:hidden;word-break:normal;border-top-width:1px;border-bottom-width:1px;border-color:#aaa;color:#fff;background-color:#f38630;}
.tg .tg-88nc{font-weight:bold;border-color:inherit;text-align:center}
.tg .tg-b7k7{background-color:#FCFBE3;font-weight:bold;border-color:inherit;text-align:left}
.tg .tg-g6ne{background-color:#FCFBE3;border-color:inherit;text-align:center}
.tg .tg-kiyi{font-weight:bold;border-color:inherit;text-align:left}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-uys7{border-color:inherit;text-align:center}
.tg .tg-0lax{text-align:left;vertical-align:top}

WEDA 100
Weight & Dimensions
Unit Normal Head
Weight kg 510
Length mm 1412
Width mm 650
Circumference mm 600

Downloads for this product:

WEDA Electric Submersible Dewatering PumpsWEDA 100 (50Hz) Data Sheet
