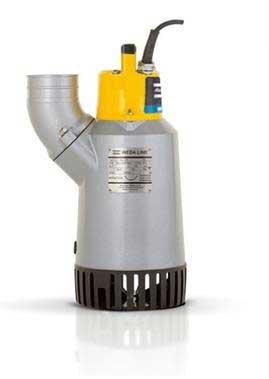

WEDA 40 Electric Submersible Dewatering Pump

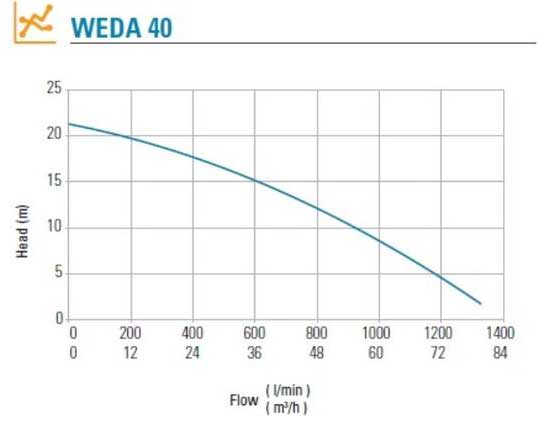

WEDA 40 Pump Curve
WEDA 40 Electric Submersible Dewatering Pump
WEDA 40 Pump Curve

WEDA 40 Electric Submersible Pump 3″

View List
SKU: N/A Category: Tags: , , , ,

The WEDA 40 is a heavy duty 3″ (4″) dewatering pump with built in motor phase failure protection and correct rotation control. The unit is easily maintained with wear resistant diffuser and impeller materials.

The WEDA 40 is offered with 230V, 400V and 500V motor options.

Optional float and zinc anodes are available.

Key Features

  • Robust design
  • Lightweight and user friendly
  • Wear resistant wet end in CR-alloy steel and natural rubber
  • Adjustable wear parts
  • Complete seal pack for easy and fast service
  • Built-in capacitor and contactor
  • Easy installation

Designed for

  • Heavy duty pumping of abrasive liquids
  • Maximum submersible depth of 20m
  • Maximum liquid temperature +40C
  • Maximum density of liquid, 1,100kg/m³
  • pH of liquid between 5-8
For technical help and advice we recommend visiting our specialist Pump Division.



Description

The WEDA pump range is designed for the performance, ease of use and reliability that you need. They are suitable for dewatering applications across multiple industries and are a cost effective solution to your dewatering requirements.

WEDA pumps are made for durability and promise optimal performance for your application.

The unique sealing system and modular design make this pump range one of the most flexible on the market.

WEDA Standard Features

WEDA Standard Features

Product Specifications

Specification

.tg {border-collapse:collapse;border-spacing:0;border-color:#aaa;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:0px;overflow:hidden;word-break:normal;border-top-width:1px;border-bottom-width:1px;border-color:#aaa;color:#333;background-color:#fff;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:0px;overflow:hidden;word-break:normal;border-top-width:1px;border-bottom-width:1px;border-color:#aaa;color:#fff;background-color:#f38630;}
.tg .tg-s6z2{text-align:center}
.tg .tg-u3lu{background-color:#FCFBE3;font-weight:bold;text-align:left}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-lyaj{background-color:#FCFBE3;text-align:center}
.tg .tg-5ua9{font-weight:bold;text-align:left}
.tg .tg-hgcj{font-weight:bold;text-align:center}
.tg .tg-dg7a{background-color:#FCFBE3;text-align:left;vertical-align:top}
.tg .tg-yq6s{background-color:#FCFBE3;text-align:center;vertical-align:top}
.tg .tg-0lax{text-align:left;vertical-align:top}

WEDA 40
Specification		 Unit Normal Head
Maximum Head m 21
Maximum Flow l/min
m3/h		 1320
146
Rated Output kW 3
Maximum Power Input kW 3.4
Rated Current (110V) A –
Rated Current (230V) A 10
Rated Current (400V) A 5.3
Rated Curent (500V) A 4.4
Shaft Speed rpm 2900
Discharge Connection inch 3″ (4″)
Maximum Solids Handling Size mm 4

Weight & Dimensions

WEDA 40
Weight / Dimensions		 Unit Normal Head
Weight kg 25
Length mm 503
Width mm 286
Circumference mm 220

Downloads for this product:

WEDA Electric Submersible Dewatering PumpsWEDA 40 (50Hz) Data Sheet
