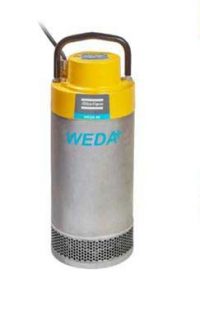

The WEDA 60+ is a heavy duty 4″ (3″) dewatering pump with built in motor phase failure protection and correct rotation control. The unit is easily maintained with wear resistant diffuser and impeller materials.
The WEDA+ range features an improved aluminium alloy casing, further enhancing corrosion resistance and extending the life of the pump.
The WEDA 60+ is offered with 230V, 400V and 500V motor options.
Optional float and zinc anodes are available.
Designed for
The WEDA pump range is designed for the performance, ease of use and reliability that you need. They are suitable for dewatering applications across multiple industries and are a cost effective solution to your dewatering requirements.
WEDA pumps are made for durability and promise optimal performance for your application.
The unique sealing system and modular design make this pump range one of the most flexible on the market.
WEDA Standard Features
Specification
.tg {border-collapse:collapse;border-spacing:0;border-color:#aaa;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:0px;overflow:hidden;word-break:normal;border-top-width:1px;border-bottom-width:1px;border-color:#aaa;color:#333;background-color:#fff;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:0px;overflow:hidden;word-break:normal;border-top-width:1px;border-bottom-width:1px;border-color:#aaa;color:#fff;background-color:#f38630;}
.tg .tg-1wig{font-weight:bold;text-align:left;vertical-align:top}
.tg .tg-s6z2{text-align:center}
.tg .tg-u3lu{background-color:#FCFBE3;font-weight:bold;text-align:left}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-p0kl{background-color:#FCFBE3;font-weight:bold;text-align:left;vertical-align:top}
.tg .tg-lyaj{background-color:#FCFBE3;text-align:center}
.tg .tg-5ua9{font-weight:bold;text-align:left}
.tg .tg-hgcj{font-weight:bold;text-align:center}
.tg .tg-yq6s{background-color:#FCFBE3;text-align:center;vertical-align:top}
.tg .tg-dg7a{background-color:#FCFBE3;text-align:left;vertical-align:top}
.tg .tg-0lax{text-align:left;vertical-align:top}
| WEDA 60+ Specification |
Unit | Normal Head | High Head |
|---|---|---|---|
| Maximum Head | m | 28 | 39 |
| Maximum Flow | l/min m3/h |
2675 161 |
1425 86 |
| Rated Output | kW | 7.5 | 7.5 |
| Maximum Power Output | kW | 8.8 | 8.8 |
| Rated Current (110V) | A | – | – |
| Rated Current (230V) | A | 22.7 | 22.7 |
| Rated Current (400V) | A | 12.7 | 12.7 |
| Rated Current (500V) | A | 10.2 | 10.2 |
| Shaft Speed | rpm | 2890 | 2890 |
| Discharge Connection | inch | 4″ (3″) | 3″ (4″) |
| Maximum Solid Handling Size | mm | 8 | 8 |
Weight & Dimensions
.tg {border-collapse:collapse;border-spacing:0;border-color:#aaa;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:0px;overflow:hidden;word-break:normal;border-top-width:1px;border-bottom-width:1px;border-color:#aaa;color:#333;background-color:#fff;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:0px;overflow:hidden;word-break:normal;border-top-width:1px;border-bottom-width:1px;border-color:#aaa;color:#fff;background-color:#f38630;}
.tg .tg-s6z2{text-align:center}
.tg .tg-u3lu{background-color:#FCFBE3;font-weight:bold;text-align:left}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-lyaj{background-color:#FCFBE3;text-align:center}
.tg .tg-5ua9{font-weight:bold;text-align:left}
.tg .tg-hgcj{font-weight:bold;text-align:center}
.tg .tg-yq6s{background-color:#FCFBE3;text-align:center;vertical-align:top}
| WEDA 60+ Weight & Dimensions |
Unit | Normal Head | High Head |
|---|---|---|---|
| Weight | kg | 58 | 58 |
| Length | mm | 760 | 760 |
| Width | mm | 330 | 302 |
| Circumference | mm | 278 | 278 |
