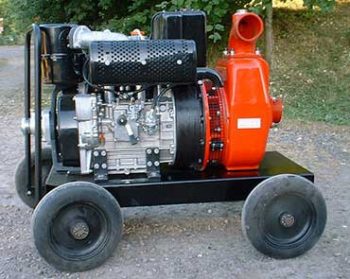

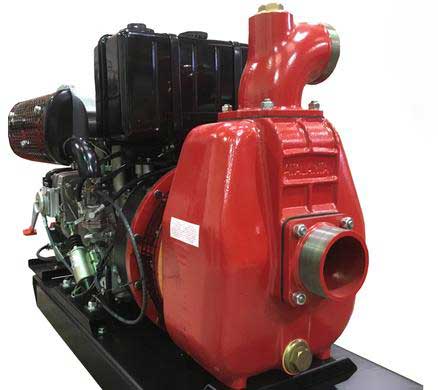

The Osprey 452 is suitable for heavy duty dewatering (both fresh & seawater), Chemical handling and potable water supply.
Powered by a Lombardini high quality air cooled industrial 2 cylinder diesel engine (Model 9LD625); developing 16.9kW at a nominal 2,700 rpm. Handle start with optional 12V electric start, 3 hour fuel tank, silencer, throttle control, oil bath, air cleaner and replaceable element oil and fuel filters.
The pump is self priming to 7m and has a solids handling capability of up to 26mm Ø. The pump set set is mounted to a baseplate / skid and offers a flow rate of 100m³/hour at 25m head (TDH to 40m).
The set is supplied complete with pump and engine operating and instruction manuals.
This pump set can be supplied according to the following agency specifications:
International Rescue Committee (IRC) order code: OSPREY 452
Oxfam order code: P4/1
Please add a note to this item once you have placed your selection in your basket if you would like us to quote for any of the options mentioned in the specifications tab.
Robust cast iron construction with rigid monobloc design. Integral non return valve and carbon / ceramic mechanical seal. Renewable wear plate / volute and fabricated steel skid baseplate as standard with removable screwed BSP male connections.
| Weight | 215 kg |
|---|---|
| Dimensions | 118 × 60 × 76 cm |
| Spares Options | Electric Start, Export Packing, Pump and Engine Spares Kit, Hose Kit, Quick Couplings, Road Trailer, Site Trolley / Trailer |
Downloads for this product:
Osprey 452 Data Sheet
