Deep Well Hand Pumping Kit

Deep Well Hand Pump Kit

Clear

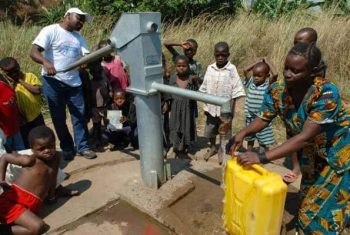

A conventional lever action hand pump with galvanised steel, cast iron and brass  components. Modular construction – fabricated galvanised mild steel body and a direct action reciprocating cylinder. 63.5mm Ø cast iron brass sleeved cylinder assembly. Requires an area approximately 2m Ø for installation and is capable of manual pumping speeds up to 40 strokes per minute. Approximate discharge at 40 strokes per minute is around 900 litres per hour. The pump is suitable for 100mm – 150mm Ø bore wells and recommended for water level setting depth of 20-45m.

This item is supplied in accordance with the following agency specifications:

International Rescue Committee LogoSave the Children Logo



Description

Save the Children order code: WA006

International Rescue Committee (IRC) order code: HANDPMP19

Product Specifications

Accessories included:

  • 12mm Ø mild steel electro galvanised connecting rods, 3m lengths with hexagonal couplings both ends
  • 32mm G.I riser pipe in 3m lengths with socket at one end
  • Approximate weight of one pump unit: 286kg

Downloads for this product:

There are no downloads for this product.
