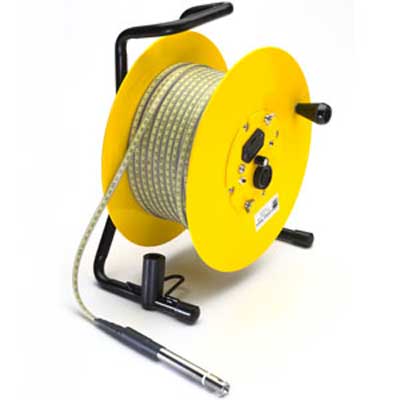

Water Level Dip Meter

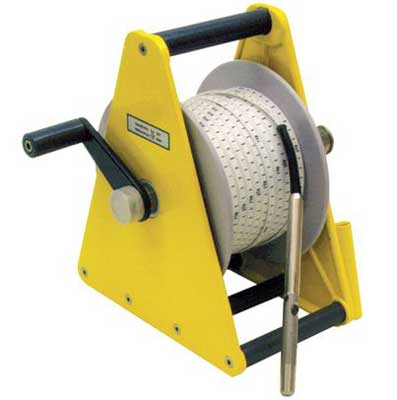

Dip Meter

Dip Meter / Water Level Indicator

Clear

This equipment measures the level of water in boreholes and wells. An audio signal sounds when the sensor touches water.

Dip meters can be supplied according to the following agency specifications:

Oxfam LogoSave the Children Logo

Description

Style and colour of Dip Meter may vary but the specification remains constant.

Oxfam order code:

BDM5/1 (50m)

BDM10/1 (100m)

BDM20/1 (200m)

Save the Children order code:

WA025 (100m)

Product Specifications

Available in three lengths, 50m, 100m and 200m.

Materials: Reel manufactured in polypropylene and abs, mounted on light weight steel frame, finished epoxy paint.

Tape: Graduated metre, decimetre and centimetre divisions, numbered black and red. Tape conductors are high strength stainless steel, ensuring little or no stretch. With normal use better than 0.05% accuracy.

Electrics: Auto indicator mounted in hub of reel together with battery, transistor, printed circuit and sensitivity control. Light emitting diode and buzzer signal also available for use on noisy sites.

Probe: 12.7mm Diameter and 220mm long, stainless steel.

Weight 2.5 kg
Dimensions 39 × 32 × 35 cm
