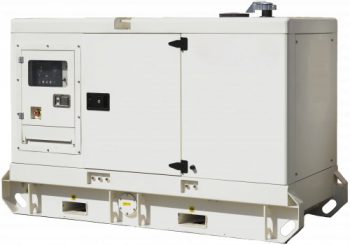

80kVA Generator Closed Set

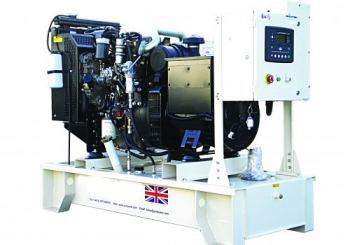

Generator Open Set

Generator BPG80RSC 80kVA

Clear

High quality design & assembly using powder coated steel for resistance to corrosion and scratch damage throughout a long service life. The water and dustproof acoustic canopy offers stiffness and low vibration with high quality sound absorbing and fire retardant inner material. All wiring and connectors are doubly protected and radiator and high voltage parts all feature protection guards.

This generator is offered as either open or closed set (with or without the acoustic canopy).

A full 12 month warranty is offered for all of the BPG range of generators.

Description

Generator Ratings & Configuration

Ratings:

Frequency 50Hz

Phases: 3

Prime output 80kVA / 64kW: This rating is applicable for supplying continuous electrical power at variable load. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.

Standby output 88kVA / 70kW: This rating is applicable for supplying electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings.

Standard reference conditions: 25°C, 100m A.S.L, 30% relative humidity.

Configuration:

  • 4-Stroke water cooled diesel engine.
  • Industrial silencer.
  • Coolant recovery tank.
  • Single bearing, 4 pole brushless alternator.
  • Anti-vibration mountings.
  • Integral fuel tank with fully bounded base protection.
  • Fuel level sensor.
  • Auto start control system with electronic digital control module DSE7420.
  • Output circuit breaker.
  • Emergency stop button.
  • High engine temperature and low oil pressure shutdown system.
  • 12V Starter battery with leads and switch.



Product Specifications



Enclosed Set Data

L x W x H (mm): 2788 x 1165 x 1700

Weight (kg):  1702

Fuel tank (litres): 180

Noise @ 7m: 70db

Open Set Data

L x W x H (mm): 2104 x 796 x 1368

Weight (kg):  1086

Fuel tank (litres): 246

Noise @ 7m: 111db

Downloads for this product:

Data Sheet BPG80RSC
