Self Priming Water Pump Kit 3"
KWATPUMCRW02 Pack

Self Priming Water Pump Kit, 2″

Self priming 2″ diesel driven pump suitable for raw water, clear water or chlorinated water with limited solids handling capability up to 14mm Ø. The Lombardini 15LD engine develops 5kW at a nominal 3600 rpm. The kit includes all necessary items to run the pump, including fittings, spare parts and tools. The engine oil supplied will cover start up and one oil change. The spare parts are intended for initial phase only.

The pump is not designed for use with sewage or sludge.

For technical help and advice we recommend visiting our specialist Pump Division.

This pump kit is supplied in accordance with the following agency specifications:

IFRC & RCS Approved



Description

IFRC & RCS (Red Cross & Red Crescent) order code: KWATPUMCRW02

Product Specifications

Engine Specification:

4 Stroke single cylinder diesel driven air cooled engine with variable speed control. Manual recoil start with dry air filter, exhaust silencer and oil and fuel filters. Low oil level security cut off and 4 litre fuel tank for approximately 5 hours running time.

Pump Features:

Cast iron centrifugal self priming pump with integral non return valve. Renewable rubber coated wear plate with cast iron high efficiency clog resistant impeller. Carbon / ceramic faced mechanical seal and detachable discharge bend. The engine is close coupled with the pump and is mounted in a prefabricated steel base with a 2 wheeled site trolley.

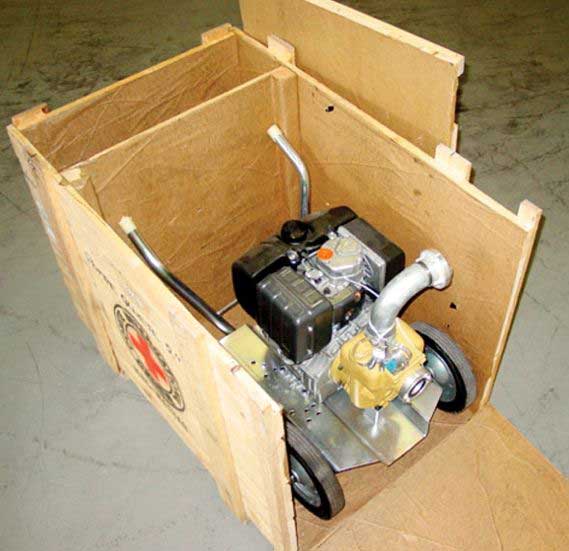

Packing:

The kit is securely packed in ISPM15 heat treated plywood casing suitable for export. One side of the case forms a detachable ramp for easy loading and unloading of the kit.

Weight 131 kg
Dimensions 117 × 78 × 96 cm

Downloads for this product:

There are no downloads for this product.
