Tank Plinth Kit for ‘Oxfam’ type tanks

View List

A set of G450  galvanised corrugated steel sheets to create a circular platform at either 8.23m Ø or 3.70m Ø. The plinth kit is suitable for use with all ‘Oxfam’ type tanks with a 2.60m or 6.40m Ø. Please make your selection from the drop down menu.

UV resistant and rot proof 25kg unfilled sandbags are provided.

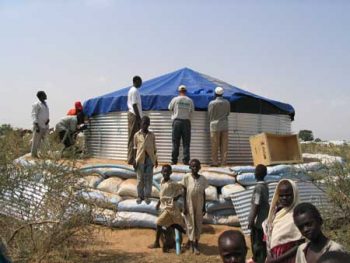

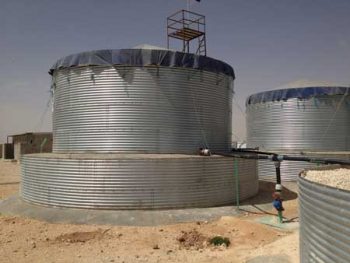

The plinth is designed to create an elevated surface for steel water storage tanks to improve gravity flow.

This kit is supplied in accordance with the following agency specifications:

oxfam_logo_large







Description

Oxfam order code for tank plinth kits:

TP for 6.40m Ø tanks

TP11 for 2.60m Ø tanks

Product Specifications

The 6.40m Ø kit provides galvanised steel sheets 75cm wide x 310cm long x 1.2mm thick, ready rolled and drilled and supplied with M10 galvanised Iron bolts, nuts and washers.

Packed Dimensions: 298 x 86 x 51cm, 470kg, 1.09m³

The 2.60m Ø kit provides galvanised steel sheets 75cm wide x 153cm long x 1.2mm thick, ready rolled and drilled and supplied with M10 galvanised Iron bolts, nuts and washers.

Packed Dimensions: 160 x 82 x 52cm, 220kg, 0.68m³

Weight N/A

Downloads for this product:

There are no downloads for this product.
