Water Trucking Bladder / Transport Bladders

Clear

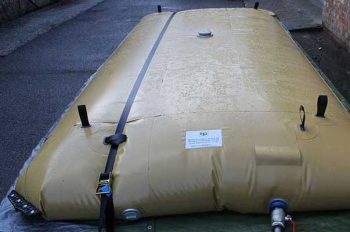

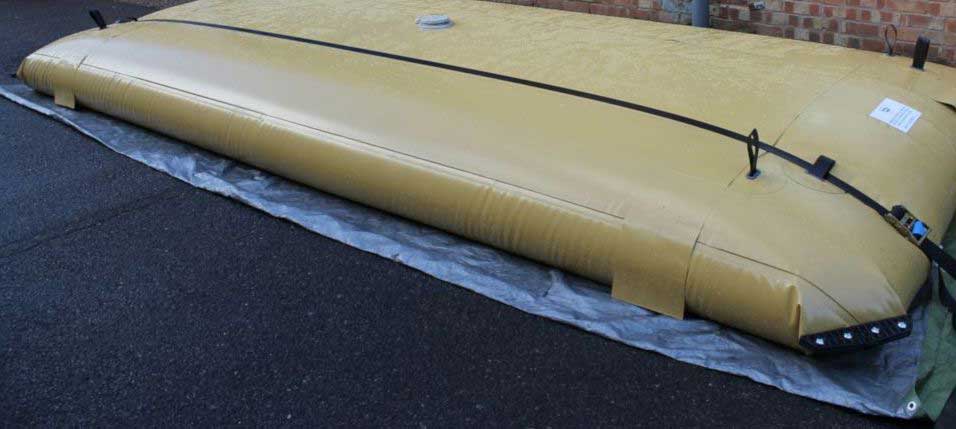

Sealed UV resistant bladder style tank manufactured to a variety of agency specifications, designed for transporting water in emergency response situations. The trucking bladder is designed to be mounted on a flat bed truck or trailer. Each kit is packed in ISPM15 heat treated plywood casing suitable for export.

Water Transport Bladder Kits can be supplied in accordance with the following agency specifications:

Save the Children LogoOxfam LogoIFRC & RCS ApprovedUNICEF Logoworld-food-programme-lg_1International Rescue Committee Logo





Description

Agency Order codes as follows:

IRC (International Rescue Committee)

IRC/A4T:1 (1,000 litres)

IRC/A4T:2 (2,000 litres)

IRC/A4T:3 (3,000 litres)

IRC/A4T:4 (5,000 litres)

Save the Children

WA004 (6,000 litres supplied with ¼ turn valves)

IFRC & RCS (Red Cross & Red Crescent)

KWATTANKP04T (4,000 litres)

KWATTANKP05T (5,000 litres)

Oxfam

TRT6/4 (6,000 litres supplied with Brass gate valves)

UNICEF

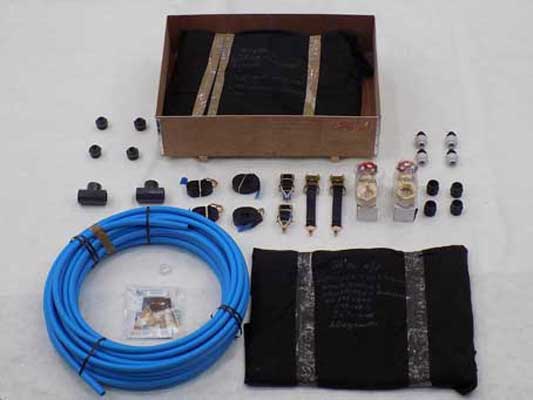

S5006035 (6,000 litres supplied with 12m hose & fittings)

WFP (World Food Programme)

WFP-WTB5

Product Specifications

Material:

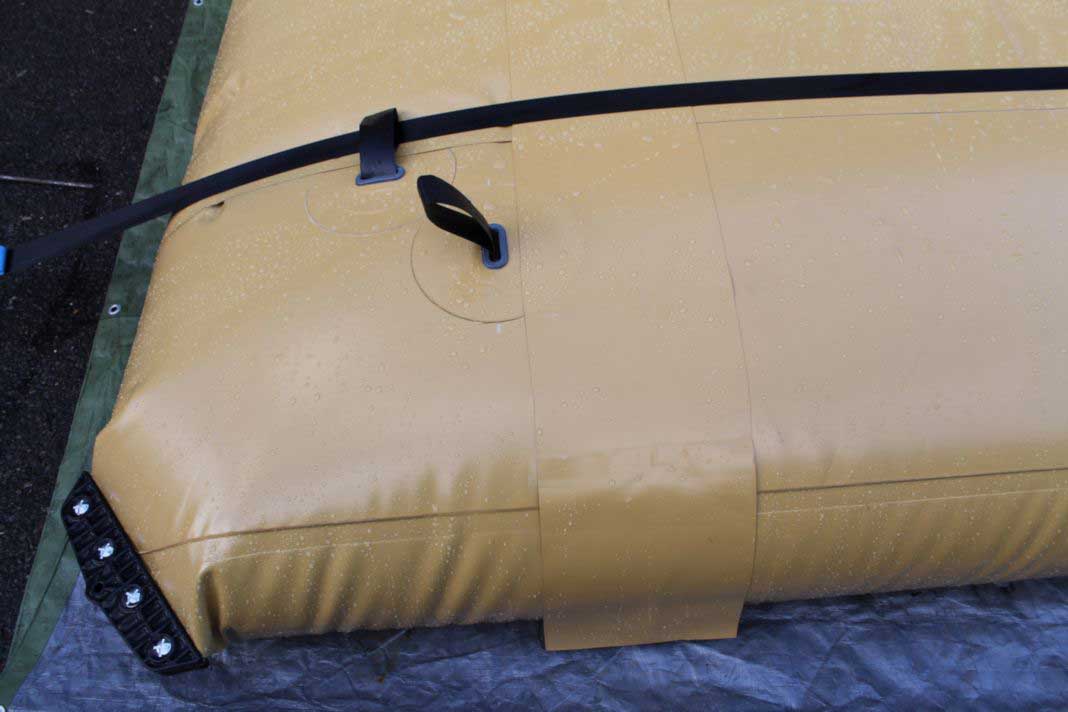

1100g/m² UV resistant food grade PVC coated polyester fabric suitable for use with chlorinated drinking water. All seams are high frequency welded with reinforced polypropylene corners for added durability.

Fittings:

2 x 2″ BSP (F) Anodised aluminium outlets (both at the same end of the bladder) fitted with anti chafe patches. 1 x  4″ BSP (F) Top cap with integral pressure relief valve to avoid overfilling.

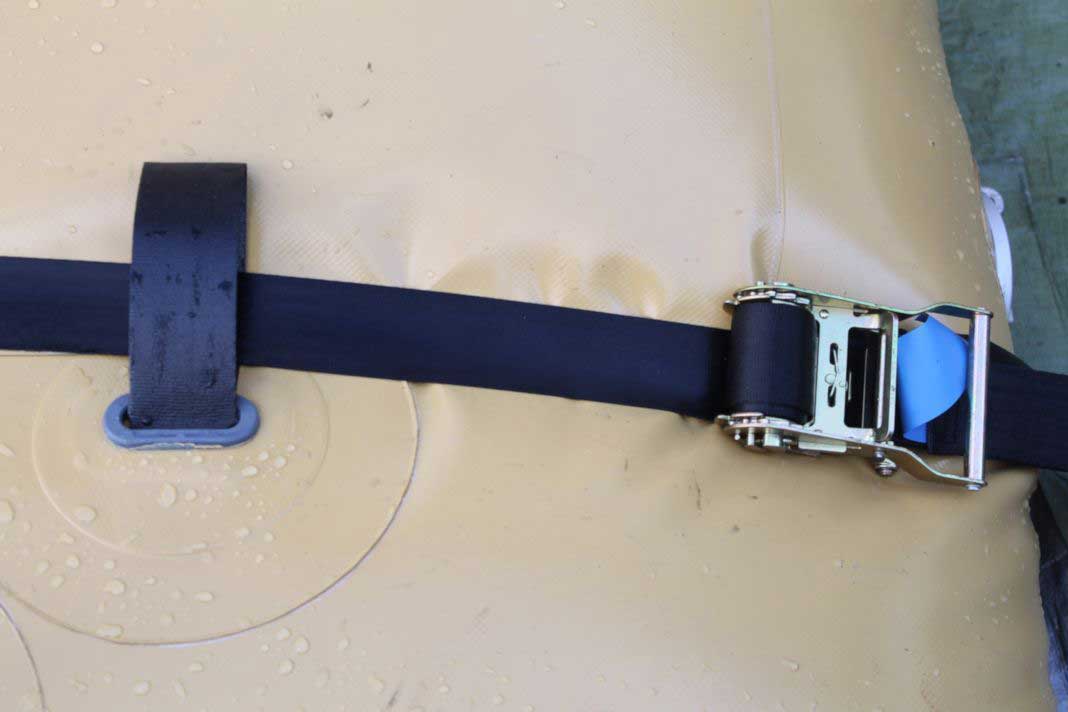

The standard kit includes a set of 50mm tough webbing ratchet straps, repair kit and protective groundsheet.

Weight 93 kg
Dimensions 134 × 62 × 50 cm

Downloads for this product:

Water Bladder Tanks General InformationBladder Tank Material Specification
