Centrifugal Chemical Handling Pump

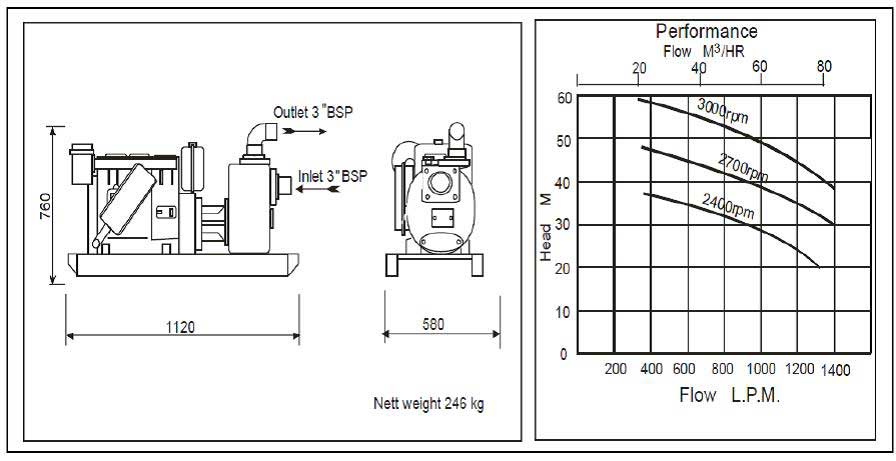

Falcon 352DF Performance Chart

Falcon 352E Self Priming Centrifugal Pump

Powered by a Lombardini high quality industrial air cooled two cylinder diesel engine; model 9LD625-2 developing 18.8 kW at a nominal 3000 rpm; complete with 12 volt electric start & battery, 10 litre 3 hour fuel tank, throttle control, exhaust silencer, oil bath, air-cleaner, replaceable element oil and fuel filters.

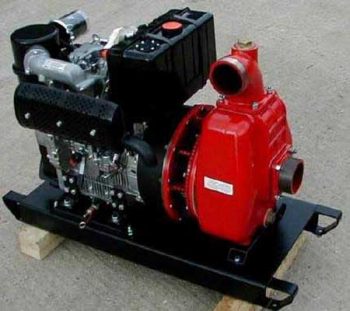

Image shows typical model for illustration purposes.

Max. flow rate: 1400 litres/min

Max. Head: 60m

For technical help and advice we recommend visiting our specialist Pump Division.

Description

Further options include:

  • Optional mechanical over speed shutdown device
  • Spares kits
  • Hoses, trailer, special couplings and casing.

Please add a note to this item in your basket if you require any of the above options and we will be pleased to provide pricing.

Product Specifications

Rust resistant cast iron construction with rigid monobloc design. Fabricated steel baseplate with fixing holes and skid ends. ‘Viton’ gaskets and ‘O’ rings Solids handling capability up to 35mm Ø. Integral non-return valve and renewable wear plates. Self priming to 5m. Removable screwed BSP 60 degree cone male connections with blanking caps and retaining chains. Silicon Carbide / Ceramic mechanical seal and stainless steel shaft sleeve.

This pump set is supplied with Pump and Engine Operating and Instruction Manuals.

Weight 246 kg
Dimensions 112 × 58 × 76 cm

Downloads for this product:

Falcon 352E 3 x 3 Self Priming Centrifugal Pump Info Sheet
