Centrifugal Chemical Handling Pump

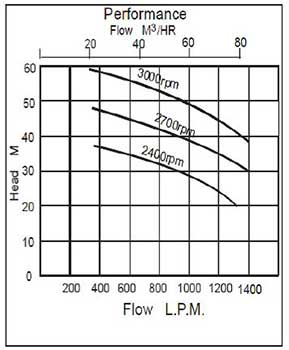

Falcon 352DF Performance Chart

Falcon 352DF Chemical Handling Pump

The Atalanta Falcon 352DF pump is powered by a high quality Lombardini industrial air cooled two cylinder diesel engine (Model 9LD625-2) developing 18.8kW at a nominal 3000rpm, complete with a 12V electric start & battery, 10 litre (3 hour) fuel tank, throttle control, exhaust silencer, oil bath air cleaner and replaceable element oil and fuel filters.

Optional mechanical overspeed shutdown device is available upon request.

This pumpset is supplied with pump and engine operating and instruction manuals.

Max. flow rate: 1400 litres / min

Max Head: 60m

Image shows typical model for illustration purposes.

Description

Set options include:

Spares kits, hoses, trailer, special couplings and export packing.

Please add a note to your item once you have placed it in your basket if you would like us to quote for any of the above mentioned options.

Product Specifications

Robust cast iron construction with rigid monobloc design. Fabricated steel baseplate with fixing holes and skid ends. ‘Viton’ gaskets and ‘O’ rings. This pump has a solids handling capability of up to 35mm Ø and is self priming to 5m.

Other features include:

  • Integral non return valve.
  • Renewable wear plates.
  • Silicon Carbide / Ceramic mechanical seal.
  • Stainless steel shaft sleeve.
  • Removable screwed BSP 60° cone.
  • Male connections with blanking caps and retaining chains.
Weight 246 kg

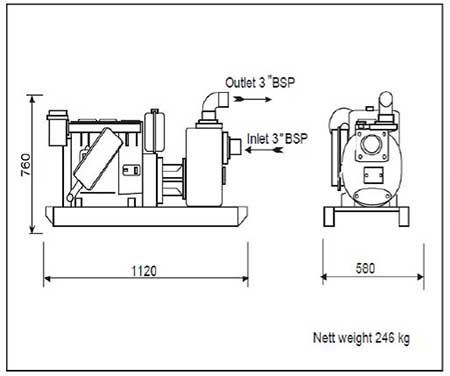

Dimensions 115 × 60 × 80 cm

Downloads for this product:

Falcon 352DF Information Sheet
