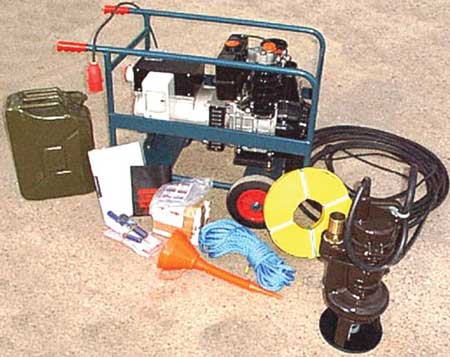

2" Solids handling pump & generator kit

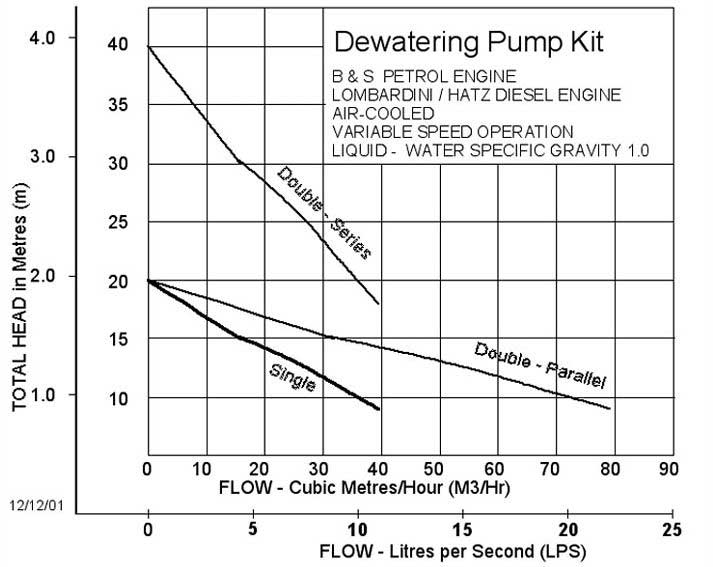

KWATPUMEDR02 Performance Chart

2″ Solids Handling Pump & Generator Kit

Clear

This kit is suitable for raw water supply, desludging, dewatering and sewage pumping. It comprises cast iron single stage centrifugal solids handling pump with Lombardini diesel generator or equivalent. The kit is supplied with all necessary equipment to operate, including instruction manuals, fuel containers, hoses, fittings and engine oil. The engine is close coupled with alternator and mounted on anti vibration mounts inside a robust tubular steel rollover frame with 2 wheels.

For technical help and advice we recommend visiting our specialist Pump Division.

This kit is supplied in accordance with the following agency specifications:

IFRC & RCS Approved

Oxfam Logo





Description

IFRC & RCS (Red Cross & Red Crescent) order code: KWATPUMEDR02

Oxfam order code: WSDP/6

Product Specifications

Engine Specification:

4 Stroke petrol or diesel (Please Specify) single cylinder air cooled with variable speed control. Manual recoil start with dry air filter, exhaust silencer and oil and fuel filters. Low oil level security shut down and hour counter. 4 litre fuel tank provides approximately 3 hours running time. Alternator with circuit breaker and earth leakage strip. Auto inducted, single bearing, brushless.

Pump Specification:

Cast iron single stage centrifugal pump with solids handling up to 50mm Ø. Cast iron high efficiency clog resistant impeller (sewage type). Tandem mechanical seals running in oil bath. Fitted 25m rot proof cable and plug with 20m extension cable and connectors.

More detailed information will be provided upon receipt of your quotation request.

Weight 242 kg
Dimensions 112 × 76 × 97 cm

Downloads for this product:

There are no downloads for this product.
