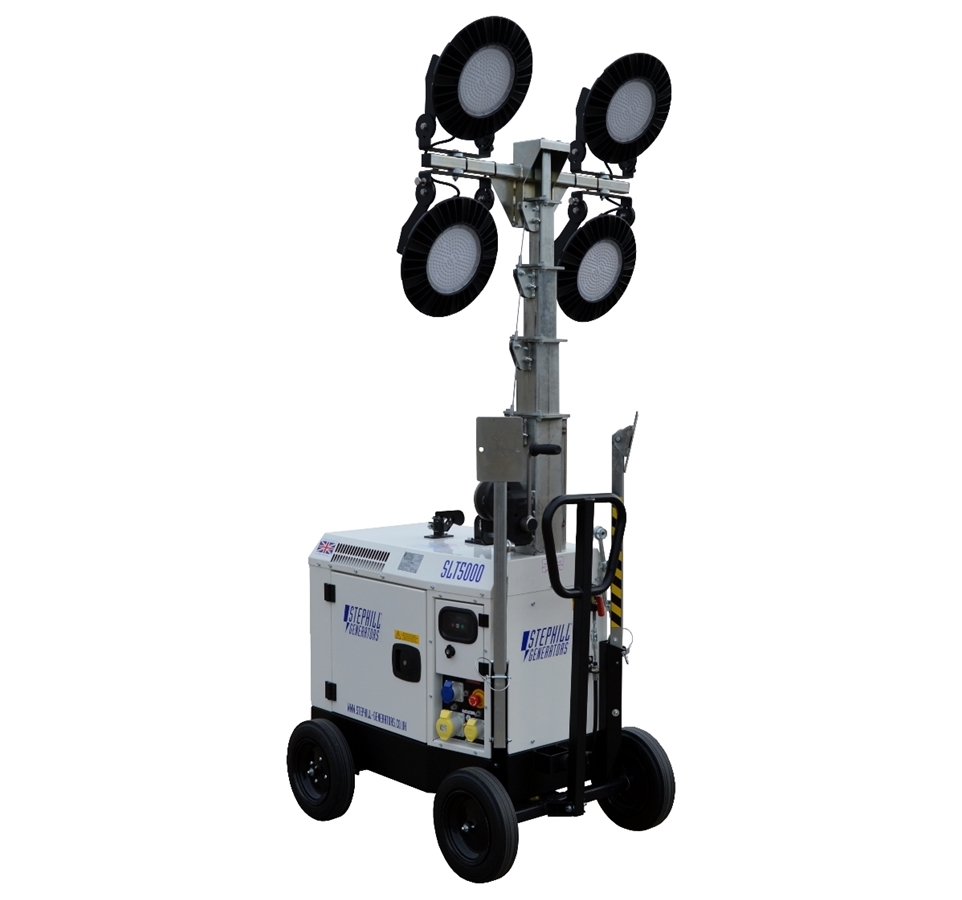

Portable Lighting Tower 6.0kVA

View List

The super silent portable lighting tower features an electric start Yanmar L100NES single cylinder air cooled diesel engine with direct injection and low fuel / low oil pressure / high engine temperature shutdown. The generator unit is mounted on an industrial 2 wheeled site trolley for portability and incorporates a stainless steel detachable 5.5m tall mast with 1000w 230v metal halide lamp and fully adjustable stabiliser legs. The unit has a corrosion resistant steel outer casing and a close fitting acoustic cabinet with a super low noise level of 66 dBA@7m.

Description

An automatic voltage regulator is available as an option for this portable lighting tower.

Please add a note to the item once it has been placed in your basket if you would like us to include this option in your quotation.

Product Specifications

Generator Specification:

  • Frequency:  50Hz
  • Phase:  Single Voltage:  230 / 115
  • CTE Power:   6.0kVA / 4.8kW
  • Alternator:  NSM M100SG
  • Type: Brushless, maintenance free
  • Regulation:  Mechanical
  • Protection class:   IP23
  • Insulation class:   H Fuel tank (with gauge) capacity:   24 litres
  • Autonomy 75% load:  17 hours (26 hours at 1000W)
  • LWA:   91
Weight 295 kg
Dimensions 129 × 79 × 89 cm

Downloads for this product:

Product Specification SLT6000D5
